DG5000
DG5000 series has 6 functions, including any waveform generator, pulse generator, IQ baseband / if source, frequency hopping source, code generator and function generator. The series includes single and dual channel models. The functions of the two channels are completely equal, and the phase between channels is precisely adjustable.

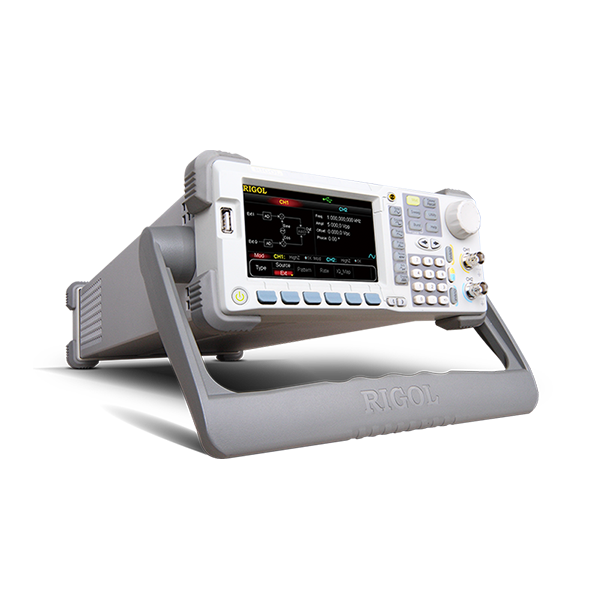

Explore the DG5000 Series Function/Arbitrary Waveform Generator
1GSa/s Sampling Rate, 14Bits Vertical Resolution

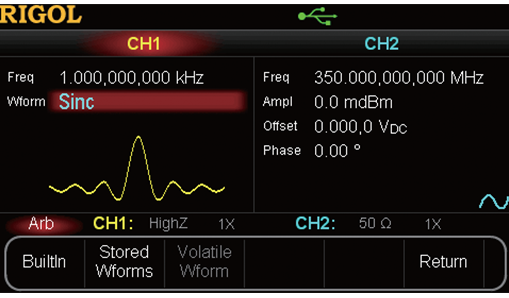

The frequency of any wave is up to 50MHz, and the sampling rate can be adjusted in the playback mode. The amplitude accuracy reaches 1% ± 1mvpp of ± setting value.
Rich Sweep Function

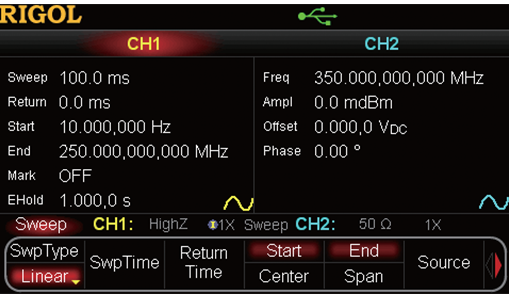

DG5000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications.
Rich Analog / Digital Modulation Functions

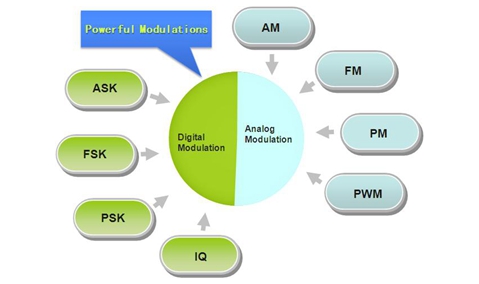

Modulation types include am, FM, PM, ask, FSK, PSK, PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

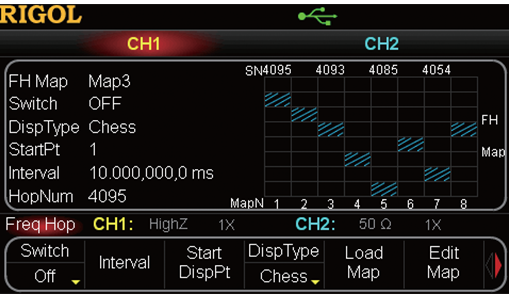

Support Frequency Hopping Function
The minimum frequency hopping interval is 80ns, and 4096 frequency hopping points can be edited at most. It can meet the common needs of FH communication teaching and related tests.
Support Internal And External IQ Modulation Function

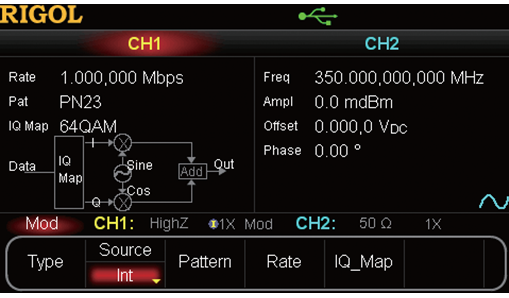

The modulation mode includes 4QAM, 8qam, 16QAM, 32qam, 64QAM, BPSK, QPSK, OQPSK, 8PSK, 16PSK, and supports internal and external modulation sources.
Rich Interfaces

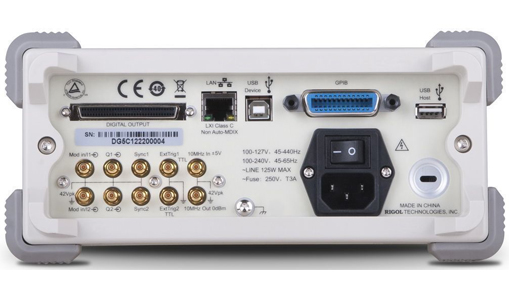

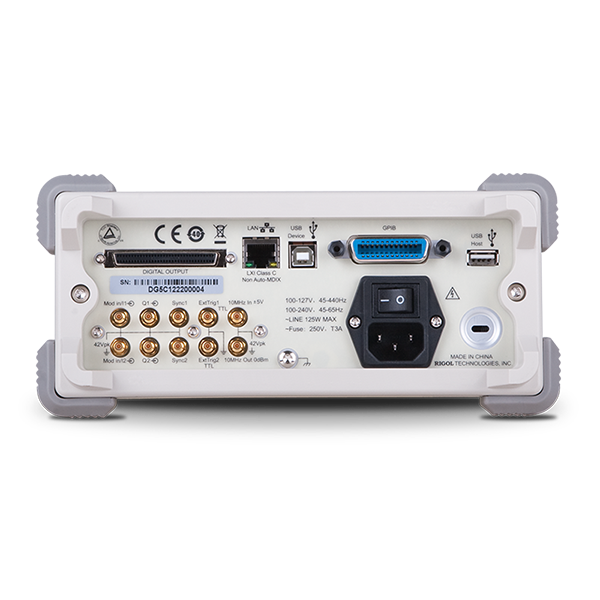

It provides standard USB, GPIB, LAN (LXI) remote communication interface and adopts standard visa driver, which is convenient for system integration customer's test requirements. 16 channels of digital signals can be output by selecting digital logic output module dg-pod-a to realize the function of analog mixed signal generator.
